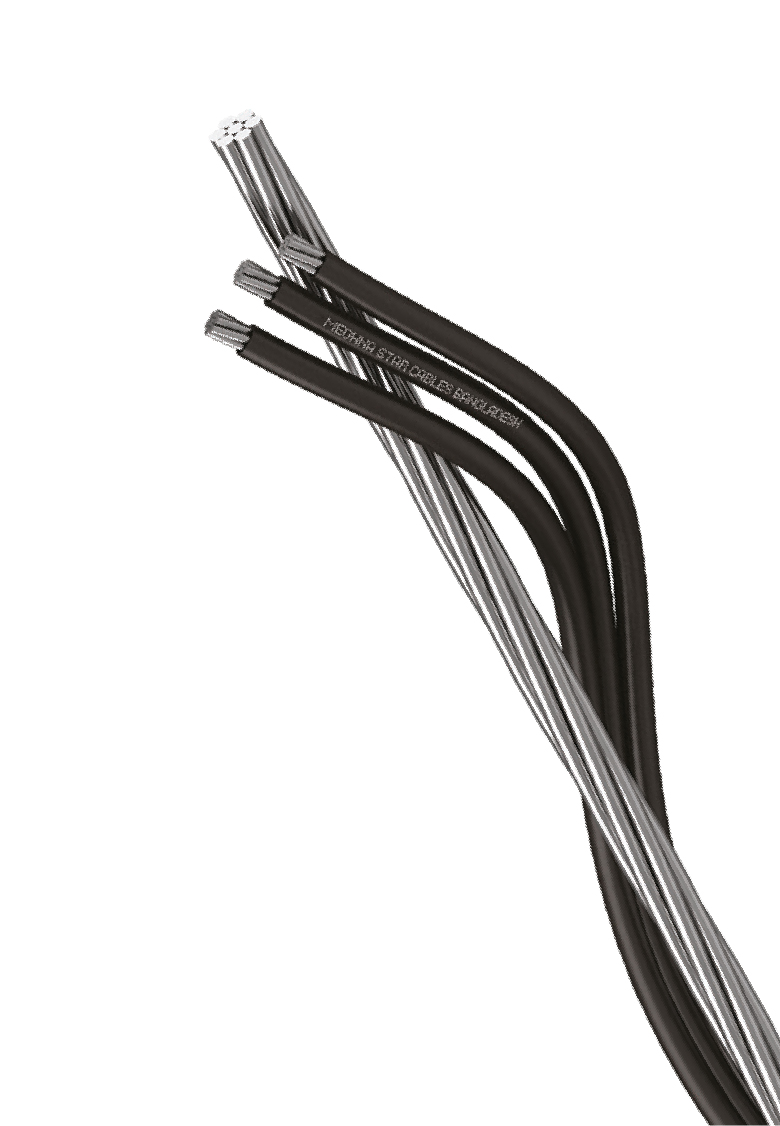

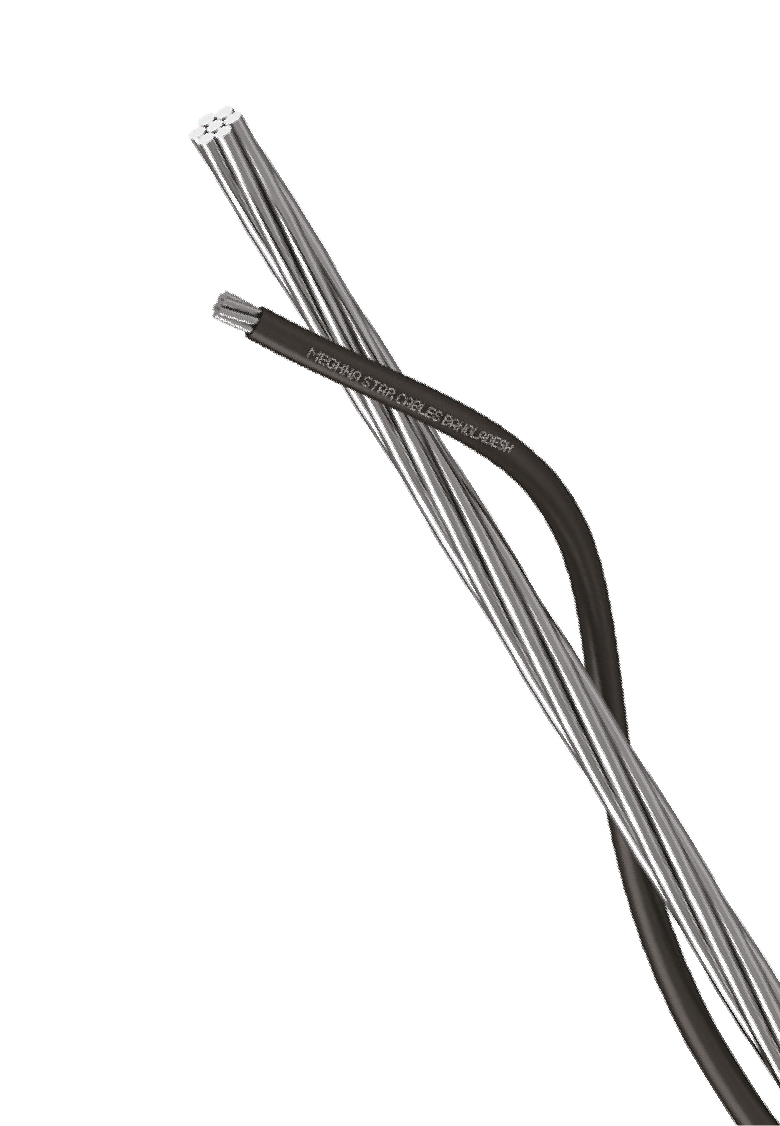

XLPE INSULATED AERIAL CABLE

Pre-assembled cross-linked polyethylene insulated aluminium cables supported by a bare ACSR messenger wire shall be used as aerial single phase and three phase service drop cable

Resources for engineers

XLPE INSULATED AERIAL CABLE Technical datasheet

Download file

XLPE INSULATED AERIAL CABLE DoP

Download file

XLPE INSULATED AERIAL CABLE

Technical specifications

Application

Pre-assembled cross-linked polyethylene insulated aluminium cables supported by a bare ACSR messenger wire shall be used as aerial single phase and three phase service drop cable

Construction

Stranded Aluminium wire to ASTM B-231

XLPE to NEMA WC-7

Standards / Compliance

ASTM B-230,
B-231,
B-232 & B-498,
NEMA WC-7,
ICEA S-66-524

Stranded Galvanized Steel wire,Class-A to ASTM B-498
Stranded Aluminium wire,1350-H19 to ASTM B-232

Characteristics

Electrical performance

XLPE-insulated aerial cables provide excellent electrical insulation, low dielectric losses, and high current-carrying capacity, ensuring efficient and reliable power transmission.

Thermal performance

XLPE-insulated aerial cables can operate continuously at temperatures up to 90°C and withstand higher short-circuit temperatures, providing excellent thermal stability and reliability.

Fire performance

XLPE-insulated aerial cables have good flame-retardant properties, helping to limit flame spread and improve safety during fire conditions.

Mechanical performance

XLPE-insulated aerial cables offer high tensile strength, flexibility, and resistance to impact and abrasion, ensuring reliable performance during installation and operation.

Environmental performance

XLPE-insulated aerial cables provide excellent resistance to moisture, UV radiation, weathering, and chemical exposure, ensuring long-term outdoor durability.
