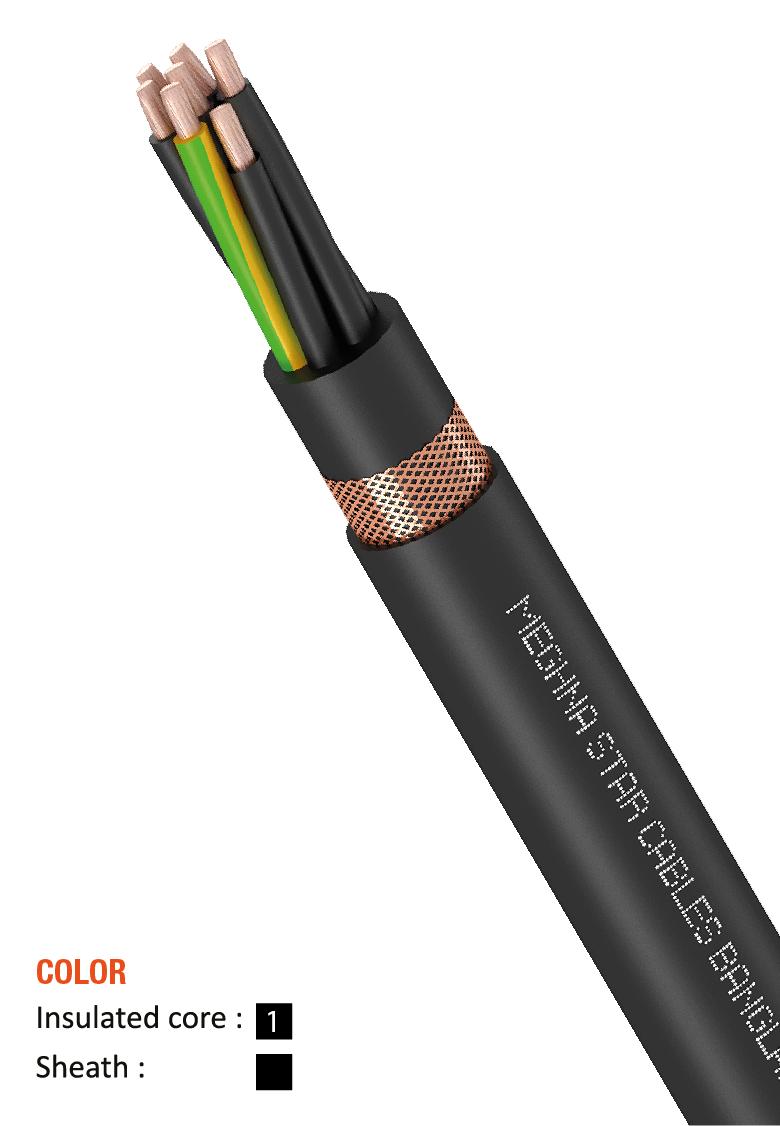

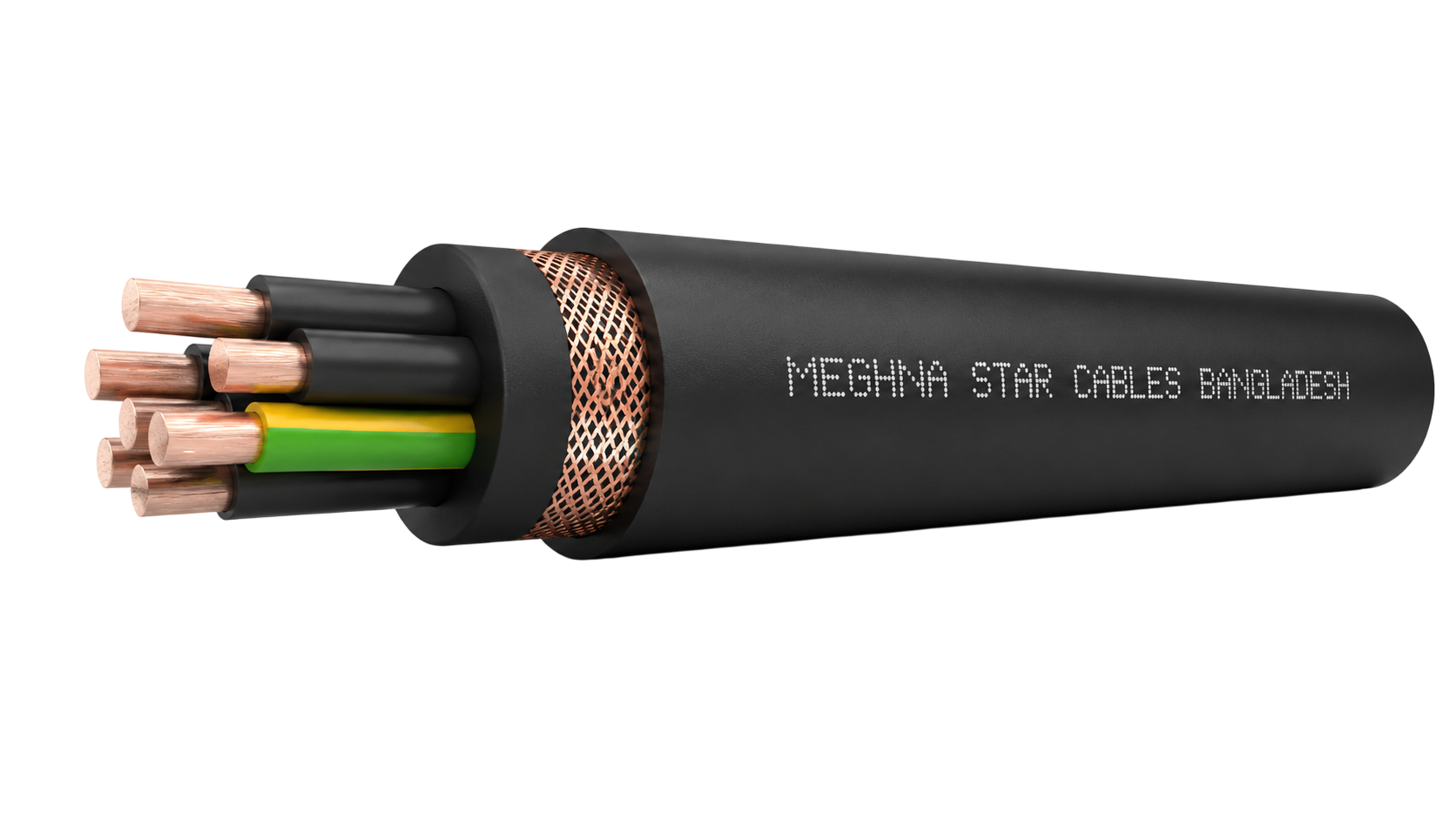

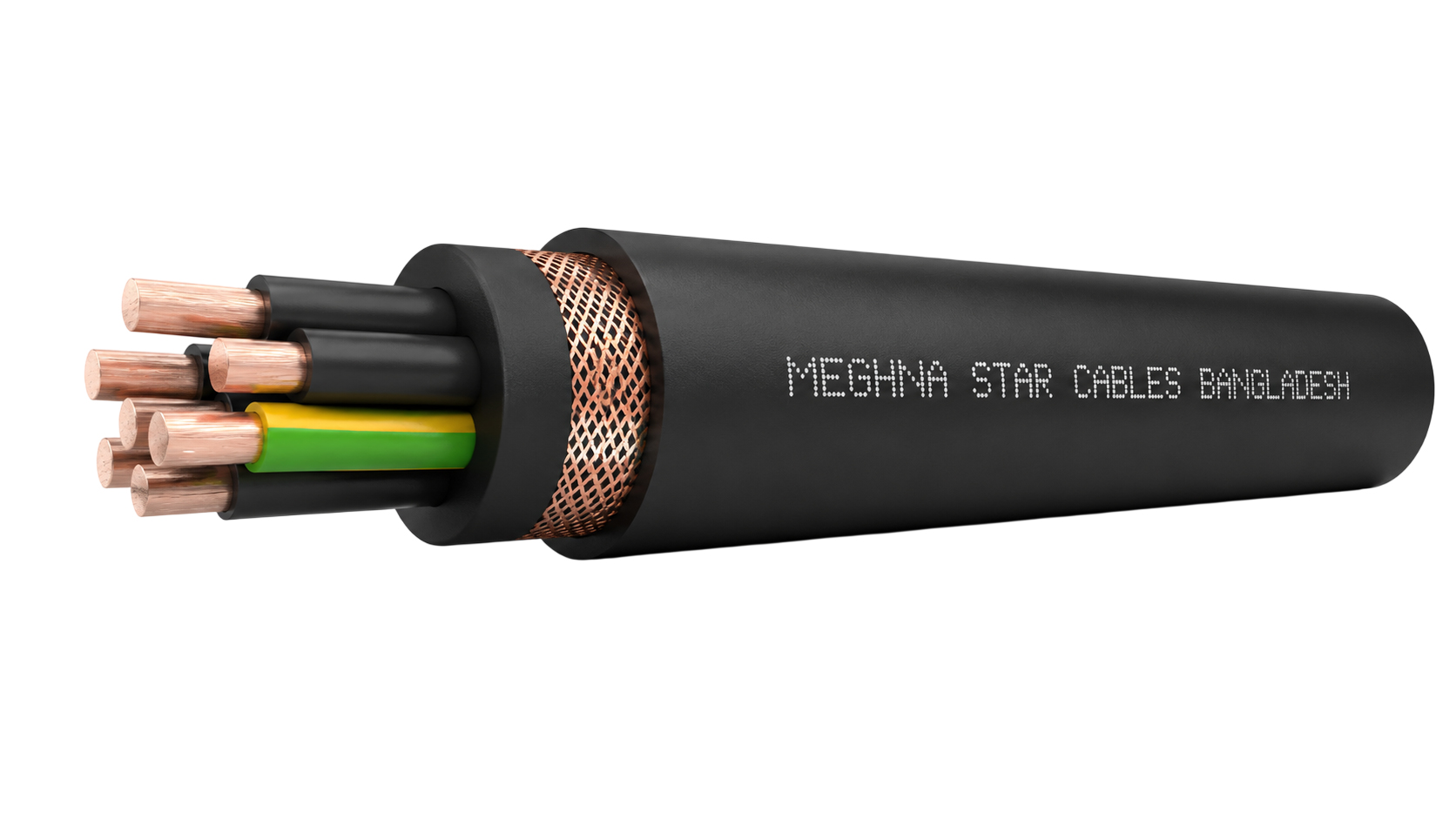

FLEXIBLE CONTROL SHIELD CABLE

The auxiliary cable is used in supervisory electrical equipment and station control circuits.

Resources for engineers

FLEXIBLE CONTROL SHIELD CABLE Technical datasheet

Download file

FLEXIBLE CONTROL SHIELD CABLE DoP

Download file

FLEXIBLE CONTROL SHIELD CABLE

Technical specifications

Application

The auxiliary cable is used in supervisory electrical equipment and station control circuits, in light, ordinary or heavy duty industry where power distribution device is needed to transmit control signals or measure signal operations

Construction

Flexible, Plain annealed copper, Class-5 to IEC 60228

PVC, PVC/D To IEC 60227-1

Standards / Compliance

IEC 60227-7

Flexible
Plain annealed copper,
Class-5 to IEC 60228

Characteristics

Electrical performance

300/500 V flame-retardant building wire with high insulation resistance, low voltage drop, and reliable performance up to 70°C.

Thermal performance

Designed for continuous operation at conductor temperatures up to 70°C (PVC types), with FRLS variants providing improved heat resistance and reduced smoke generation under overload or fire conditions.

Fire performance

Uses flame-retardant insulation that limits flame spread and self-extinguishes after ignition; FRLS type also produces low smoke and low toxic gas emissions, improving safety in case of fire.

Mechanical performance

Highly flexible, easy to bend, and offers good durability and abrasion resistance for smooth installation in conduits and tight spaces.

Environmental performance

Uses low-smoke, flame-retardant PVC that reduces toxic gas and smoke emissions during fire, and its materials are recyclable, making it safer for indoor environments.
