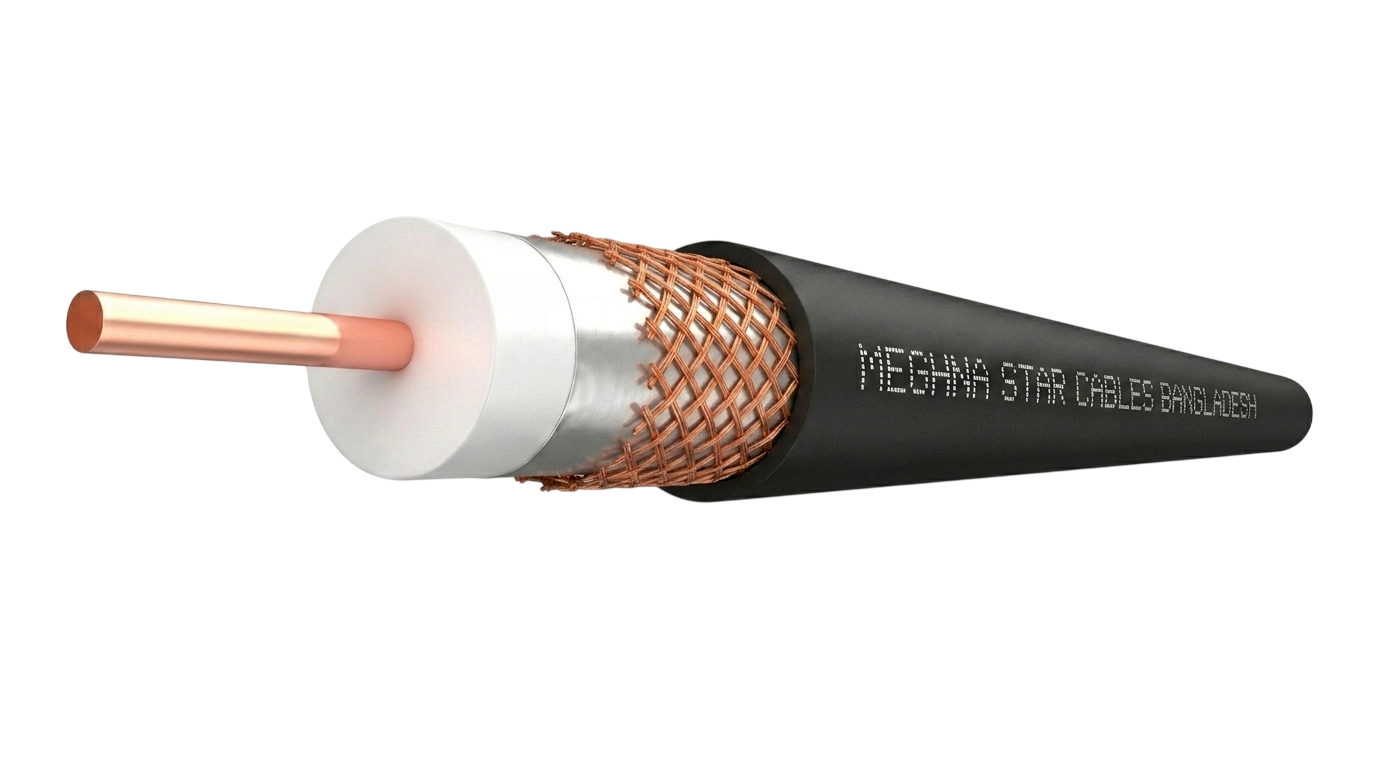

CO-AXIAL COPPER CABLE

Whatsapp Jki-linkedin-in Envelope

CO-AXIAL cable for all kinds of signals transmission.

STANDARD: VDE 0816

The tried and true coaxial cable can transmit all kinds of signals- HDTV, digital video, composite video, component video, S-video, FM, and more. We have several options of coax to choose from for wherever you need to use them: schools, hospitals, security systems, or even just connecting your home cable TV Indoor & outdoor.

Copper cable

Enhanced Fire Safety LSZH / CPR

Lighter Weight and Potentially Lower Cost (compared to Copper)

Resources for engineers

CO-AXIAL COPPER CABLE Technical datasheet

Download file

CO-AXIAL COPPER CABLE DoP

Download file

CO-AXIAL COPPER CABLE

Technical specifications

Application

Construction

Conductor

Solid Plain annealed copper to ASTM B3

Insulation

The standard identification according to VDE 0816,is the following:
1 x Natural.
1 x Black.

Outer sheath

Polyethylene(PE)
Black colour.

Standards / Compliance

ACCORDING TO: VDE 0816.

Standards and approvals

  • VDE 0816.

Construction Products Regulation

  • Foam PE Insulted
  • Cu Braided screen
  • PVC Sheathed cable

Disclaimer

The information displayed on this website is provided for reference purposes only and is not legally binding. Specifications, values, and technical data may be subject to change without notice. To obtain verified and up-to-date technical data for a specific cable, please download Top Cable’s official Technical Specification in PDF format. The PDF document constitutes the sole authoritative source of product data.

Characteristics

Electrical performance

0,6/1kV

Thermal performance

Maximum conductor temperature: 90ºC. Maximum short-circuittemperature: 250ºC (max. 5 s). Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0ºC.

Fire performance

Flame non-propagation according to EN 60332-1 / IEC 60332-1. Fire non-propagation according to EN 60332-3 / IEC 60332-3 and EN50399. Reaction to fire CPR: B2ca -s1a, d1, a1 (for single core cables) and B2ca-s1b, d1, a1 (for multicore cables) according to EN 50575.
LSZH (Low Smoke Zero Halogen) according to IEC 60754-1. Low corrosive gases emission according to EN 60754-2 / IEC 60754-2.
Low smoke emission according to EN 61034 / IEC 61034:Light transmittance > 60%.

Mechanical performance

Minimum bending radius: x5 cable diameter. Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Acceptable.
UV Resistant: UNE 211605.
UV resistant according to EN 50618.
Water resistance: AD8 Submersion.

Installation conditions

Open Air.
Buried.
In conduit.

Other

Meter by meter marking.

Why choose our CO-AXIAL CABLE

As cable manufacturers, we ensure cost-effective premium quality and lasting performance.

Our in-house labs guarantee rigorous cable quality, reliability, and standards compliance.

Global cable delivery solutions—expert logistics for seamless supply.

Full cable stock, ready for fast delivery- shortest lead times.
Largest European stockholding.

EPD-certified cables: Sustainable manufacturing for your Scope 3 success.

Expert, friendly and professional sales team offering a fast & efficient customer service. Global customers are welcome!
