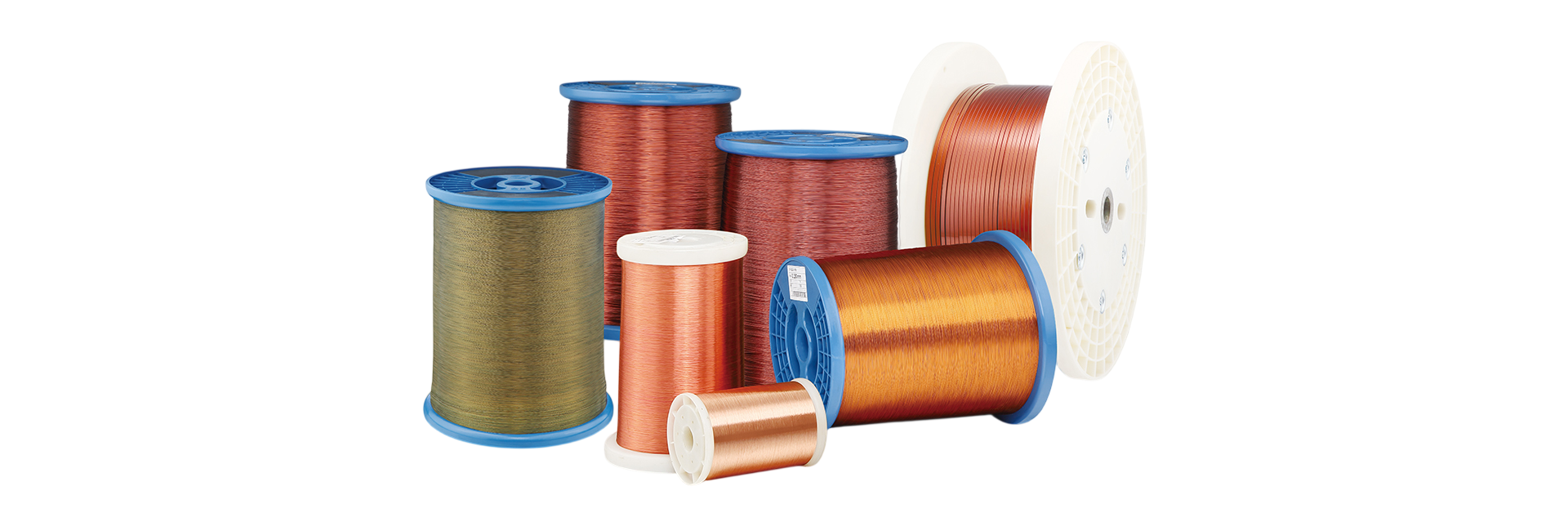

Enamelled Round Copper Winding Wires

Enamelled round copper winding wires are mainly used in motors, transformers,generators, inductors, and other electrical equipment for efficient and reliable coil winding.

Resources for engineers

Enamelled Round Copper Winding WiresTechnical datasheet

Download file

Enamelled Round Copper Winding Wires DoP

Download file

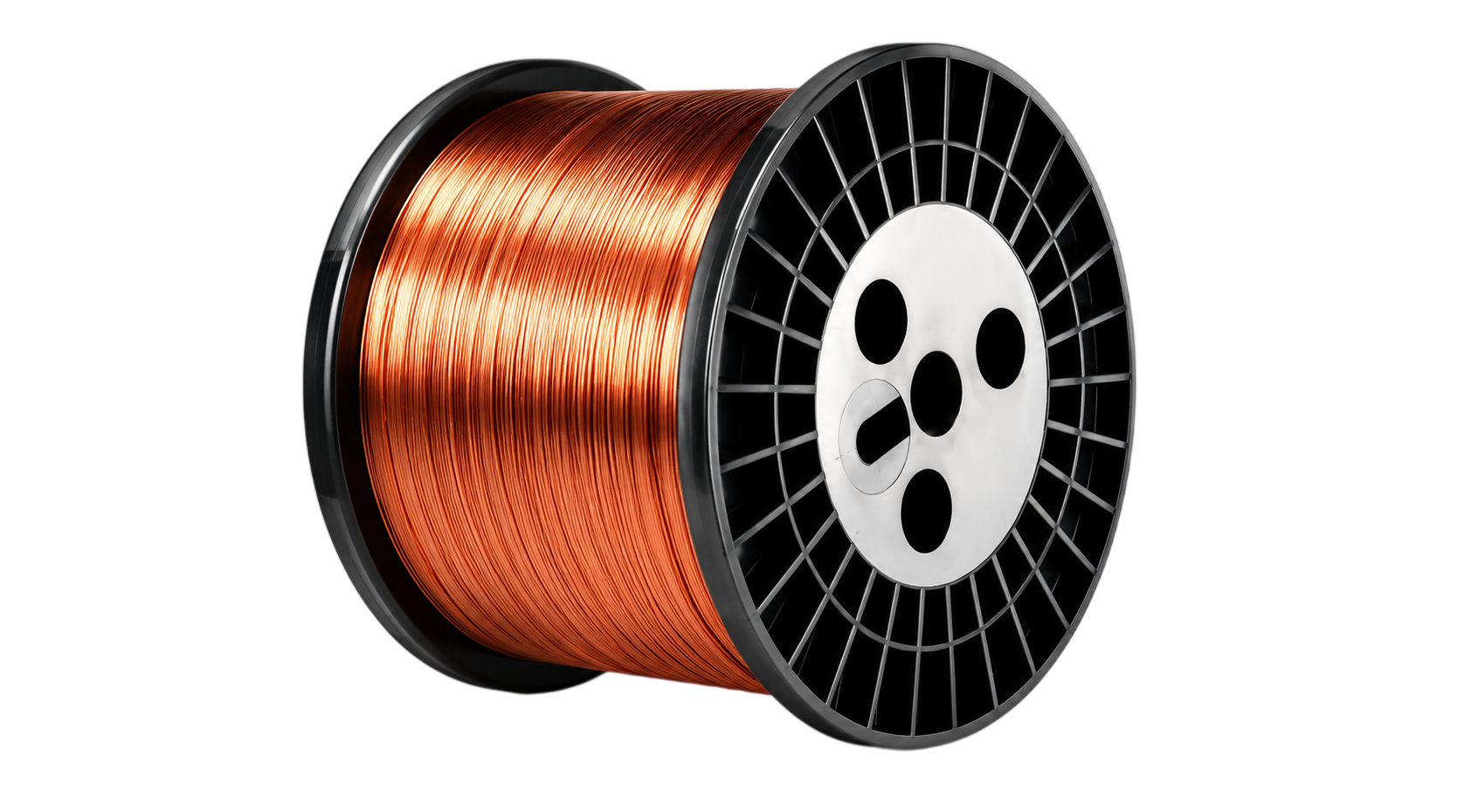

Enamelled Round Copper Winding Wires

Technical specifications

Application

Enamelled round copper winding wires are mainly used in motors, transformers,generators, inductors, and other electrical equipment for efficient and reliable coil winding.

Construction

Solid/ Stranded Circular/ Compacted, Plain annealed copper, class 1 or Class-2 to IEC 60228

Cross linked polyethelene, XLPE to IEC 60502-1

Standards / Compliance

IEC 60502-1
BS 6387
IEC 60331

Solid/ Stranded Circular/ Compacted
Plain annealed copper
class 1 or Class-2 to IEC 60228

Characteristics

Electrical performance

Uo/U (Um) : 0.6/1.0 (1.2) kV

Thermal performance

Operating temperature 90°C, short-circuit temperature 250°C, and fire resistance up to 950°C (IEC 60331 / BS 6387).

Fire performance

Maintains circuit integrity during fire and complies with IEC 60331 and BS 6387 fire-resistance standards, ensuring continued operation under fire conditions.

Mechanical performance

Features good mechanical strength, flexibility, and resistance to impact and abrasion, making it suitable for reliable installation and operation in demanding environments.

Environmental performance

Offers low smoke emission, flame-retardant performance, and resistance to moisture, oils, and common environmental conditions, enhancing safety and durability.
